Free shipping 10W LaserMan Show Lights for Laser Dance Performance
- Stock: 100
- Brand: BAIYI LIGHT
- Model: BY-RGB10W-Laserman
- Weight: 15.00kg

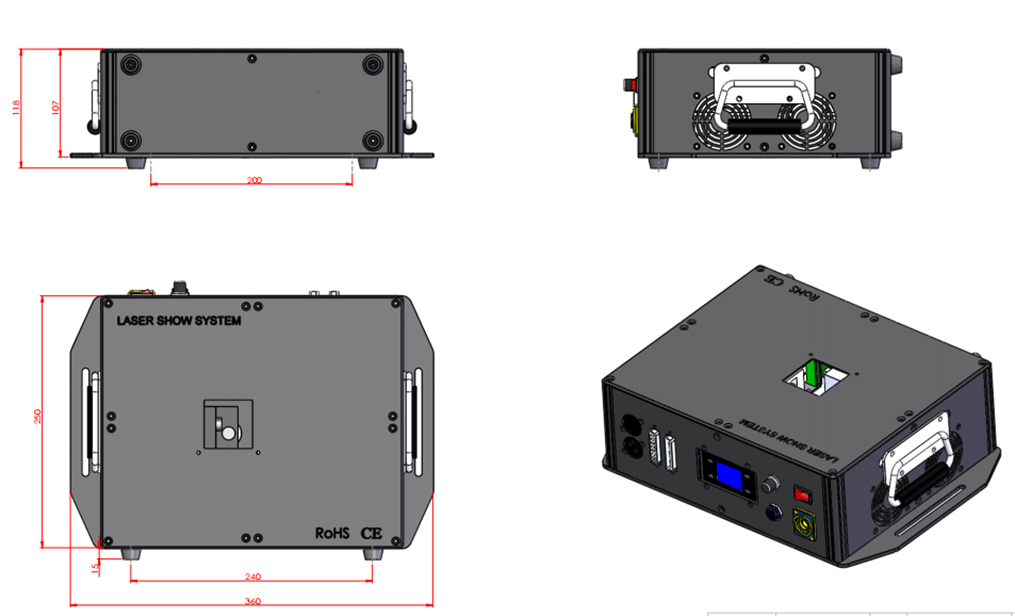

- Dimensions: 470.00mm x 380.00mm x 250.00mm
Product Views: 411
$1,040.00
Free Shipping 10W SD Card Full Color Laserman
Laser Specifications:
1).Item Model:RGB10W
2).Input Voltage:90V-240V,50-60HZ
3).Laser Power:
RGB10W=Red 638nm 3W+Green 520nm 3W+Blue 445nm 4W;
4).Play Mode:Auto,Sound-Active,dmx512,Master/Slave,sd card,Key Switch,ild port
5).Scanner Speed:PT20kpps/AT30kpps/DT40kpps
6).Scanning Angle:±25°
7).Life Time:>10000h
8).Operation Temperature:15-35°C
9).Cooling System:Fan Cooling
10).Warranty: One Year
11).Flight Case Size/Weight:470*380*250mm/15kg
Main Parameters:
Offline modes: auto, voice, SD list and storage list
Online modes: DMX512 have multiple type change by menu
SD card list: supply standard ILDA files by DMX512 or manu. The factory preset provides About 400M ilda files.
Storage list: have 16M capacity, which can store simplified ILDA file
Support customization laser show, support SD card update program.
Support ILDA DB25 pin interface, support the shutter protect. and can automatic or manual switching with menu.
Support laser single point protection with protection action value (necessary the feedback signal from galvanometer).
voice control: support select the voice control trigger threshold and frequency range.

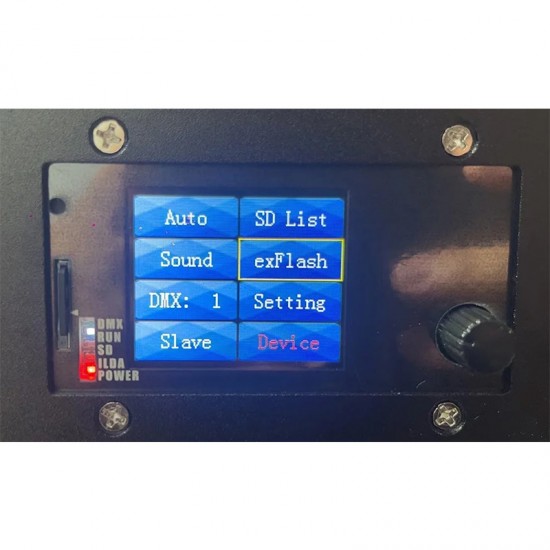

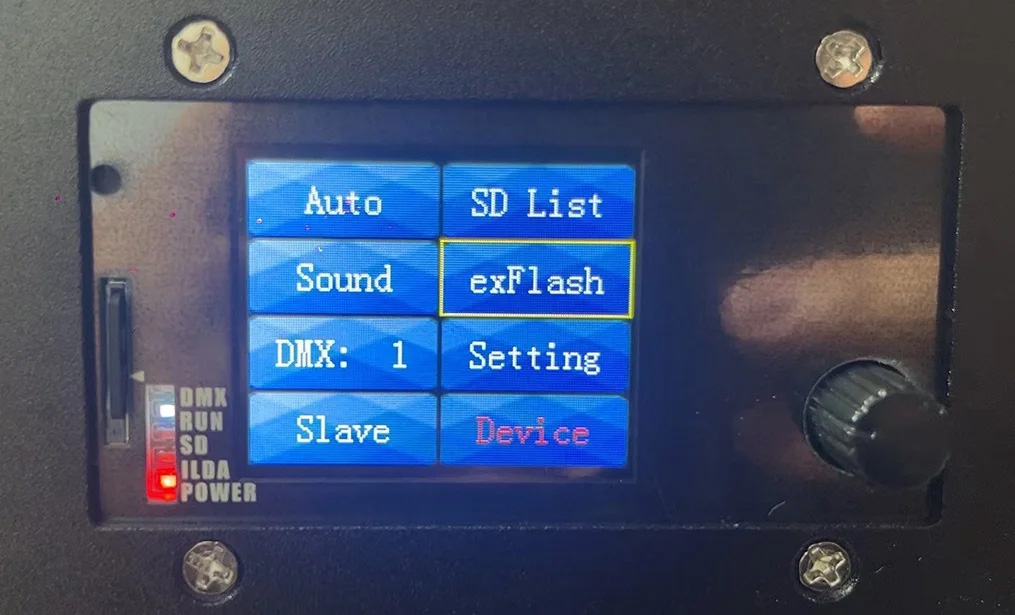

Five LED flag:
DMX: flash when get dmx512 signal
Run: flash when working
SD: light on when read SD card.
ILDA: light on when connect ILDA (check DB25-4pin and DB25-7pin),flash when shutter off(DB25-13pin pull off)
Power: light on when have power supply
Difference Scanner Speed:
1.We have different scanner speed: PT20kpps, AT30kpps, DT40kpps.
2.Faster Scanner Speed means:
a.When you show animations or texts effects, it will much fluently and little flicker.
b.When show a texts, laser will show out much completely, neatly and perfectly texts effects, like the photo as follows.
c.If most of time, you just need beam effects, so suggest PT20kpps laser, if need for texts, animations, logos,advertising, suggest AT30kpps or DT40kpps laser.
