Free Shipping ENTTEC DMX Controller for Pangolin Quickshow BEYOND
- Stock: 100
- Brand: BAIYI LIGHT
- Model: BY-ENTTEC-CN
- Weight: 0.80kg
- Dimensions: 100.00mm x 100.00mm x 100.00mm
Product Views: 332
$200.00

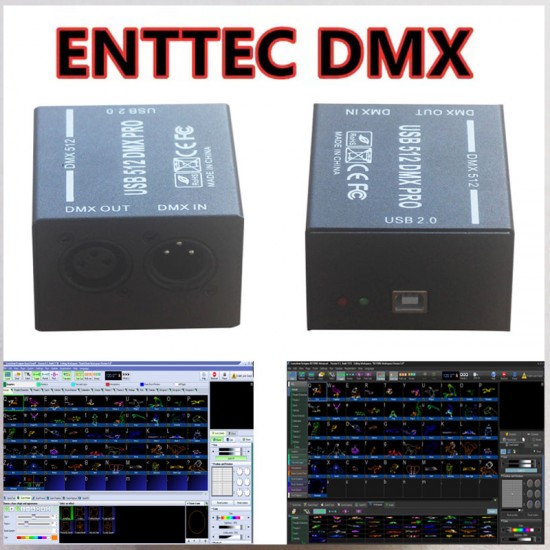

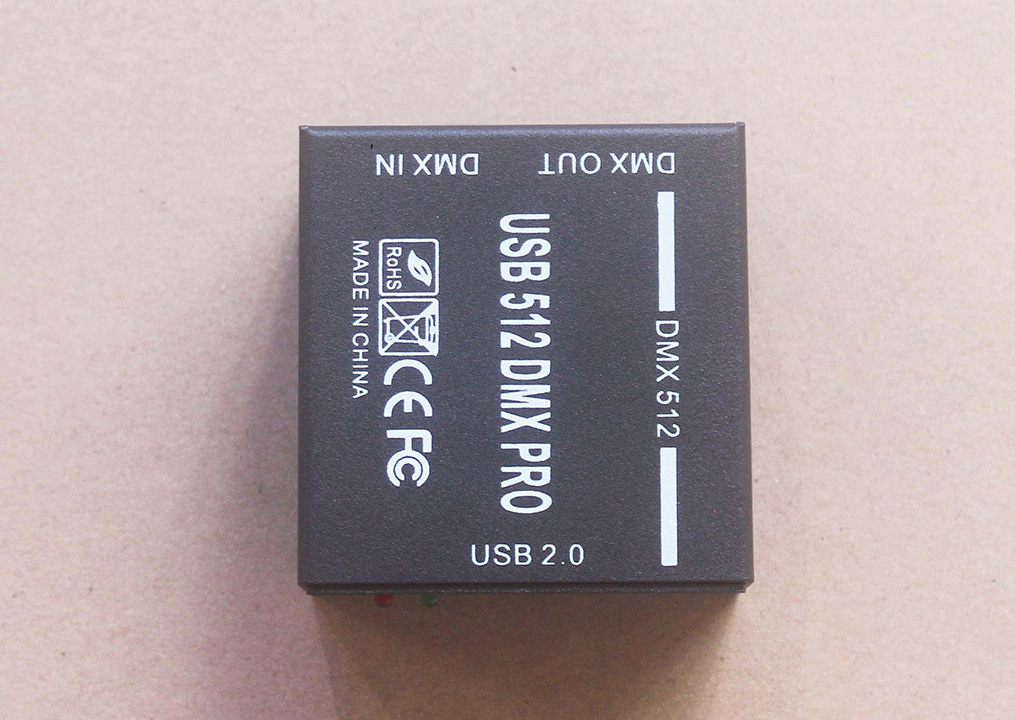

Getting to know DMX USB PRO：
The DMX USB PRO is a hardware interface which can convert between a computer, by plugging it into a Universal Serial Bus (USB) and various types of lighting equipment, via the industry standard DMX512 protocol.
The accompanying Driver software allows the computer to control and configure the DMX USB PRO, It support “E1.11 - 2008, USITT DMX512-A”standard. It can easy to control all lighting by DMX signal.
DMX USB PRO Description:
◆All 512 channel support
◆Support all software use the ENTTEC PRO setting
◆It can driver all lighting device(if it support DMX512)
Technical Requirement:

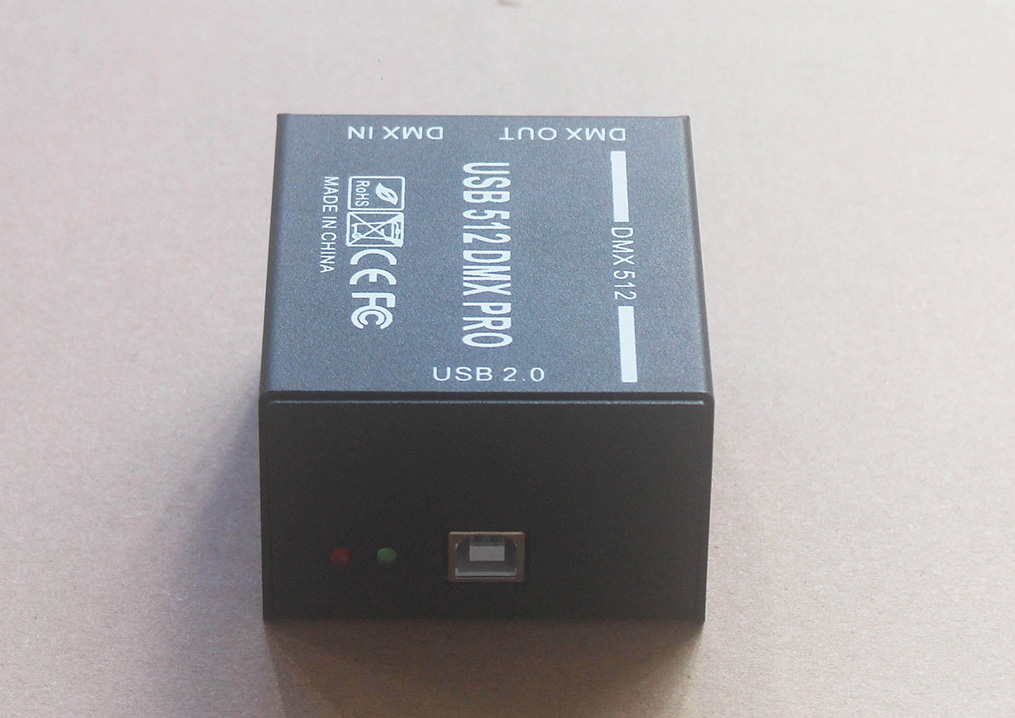

Input : PC USB V2.0
DMX channel number : 512 Channels
DMX Type : DMX Out

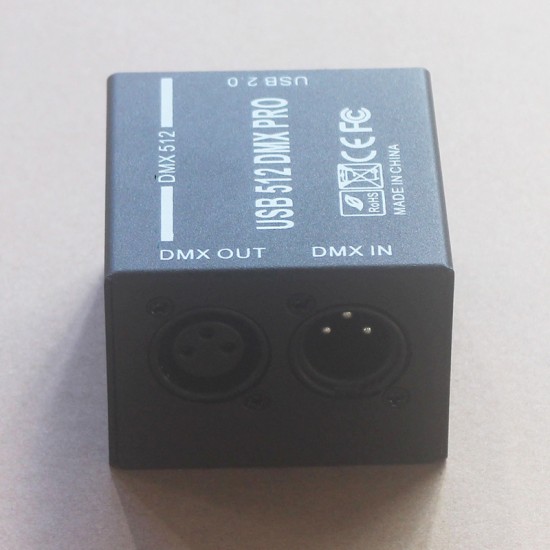

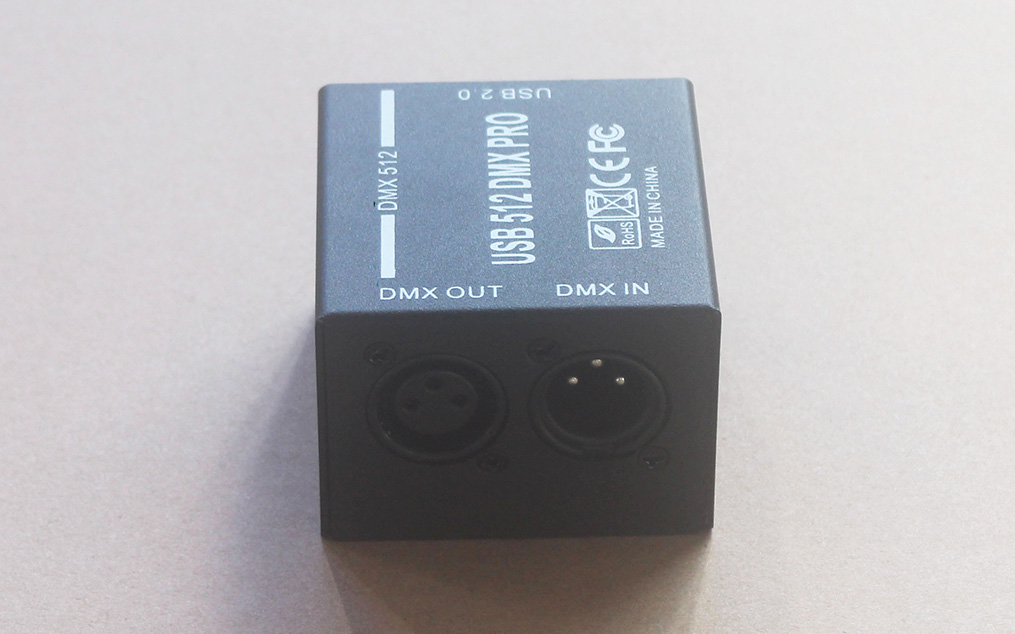

DMX Interface : 1x XLR 3pin Female
Protect solution : 4000V DC-DC isolation，Output use TVS
diode eliminate the high voltage noise.
Operate voltage : 5V USB
Output impedance: 120 ohm
System requirement:
1 x idle USB 2.0 Port
PIII 1GHz or above
Sruix Lighting
Sruix Lighting
Windows 2000, Windows XP, Windows Vista(32/64bit), Windows 7(32/64bit),Winows 8(32/64bit), Windows 10, MAC OSX, Linux
Support Software:
FreeStyler
DMX Control
ENTTEC Light Factory
MADRIX DMX512

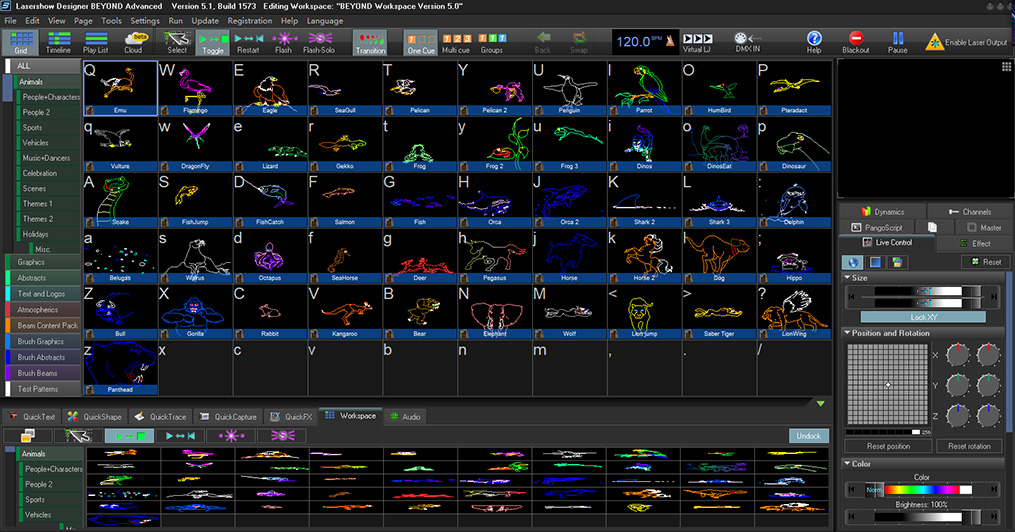

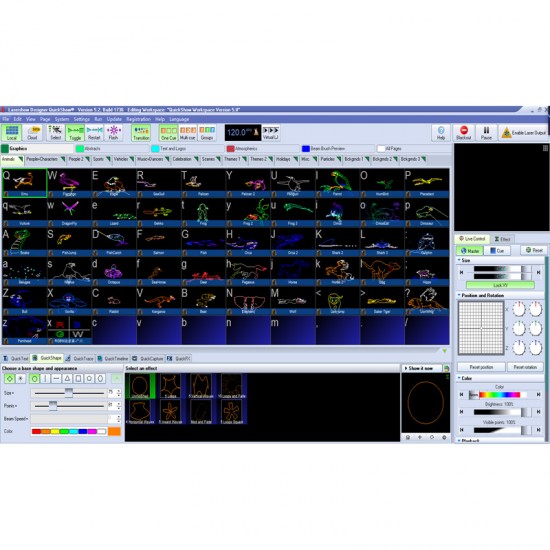

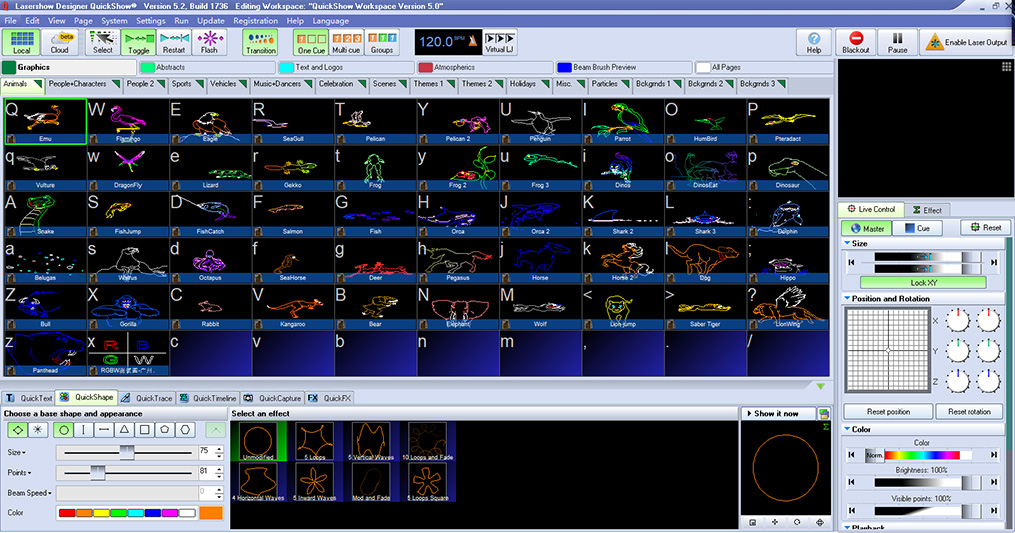

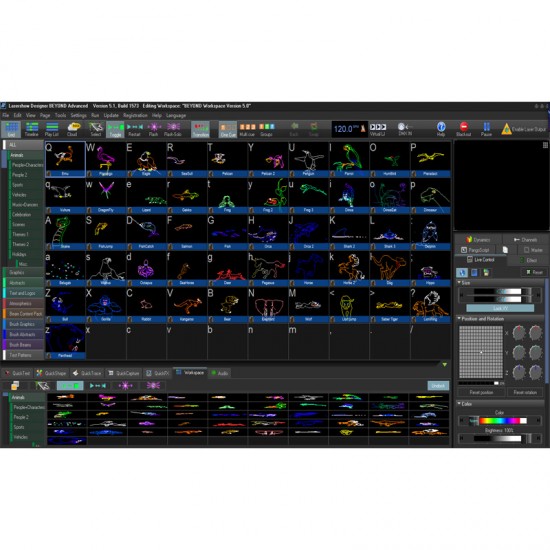

QuickShow - Pangolin
Madrix - (Windows)
