Free Shipping PT20Kpps Professional Laser Galvo Scanning system
- Stock: 100
- Brand: BAIYI LIGHT
- Model: BY-PT20K
- Weight: 1.00kg
- Dimensions: 100.00mm x 100.00mm x 100.00mm
Product Views: 51
$100.00
PT20Kpps Galvo Scanning system for Laser light
1).No Dis And ILDA=Without LCD Display And No ILDA Interface
2).With Dis And ILDA=With LCD Display And ILDA Interface

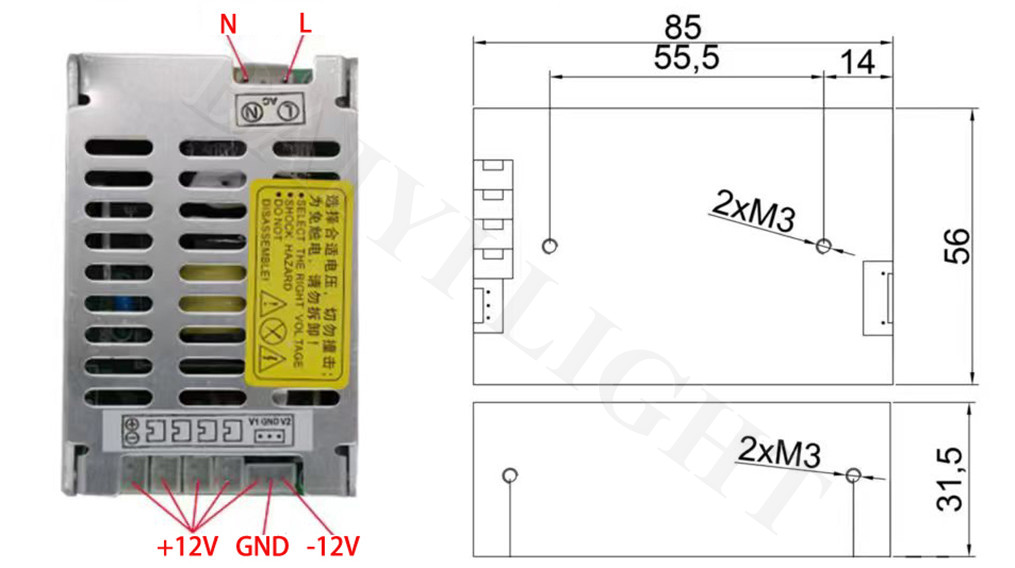

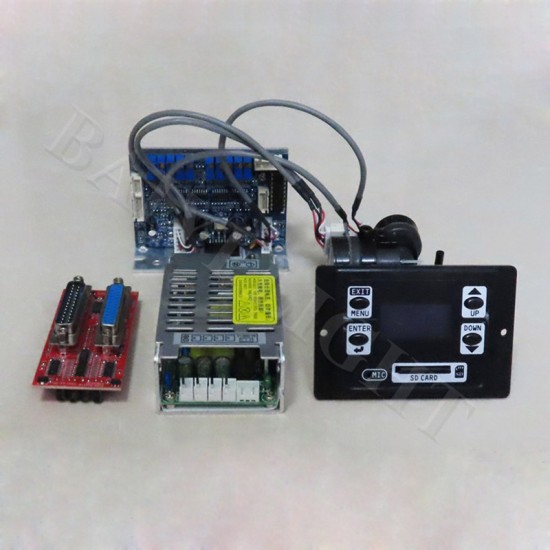

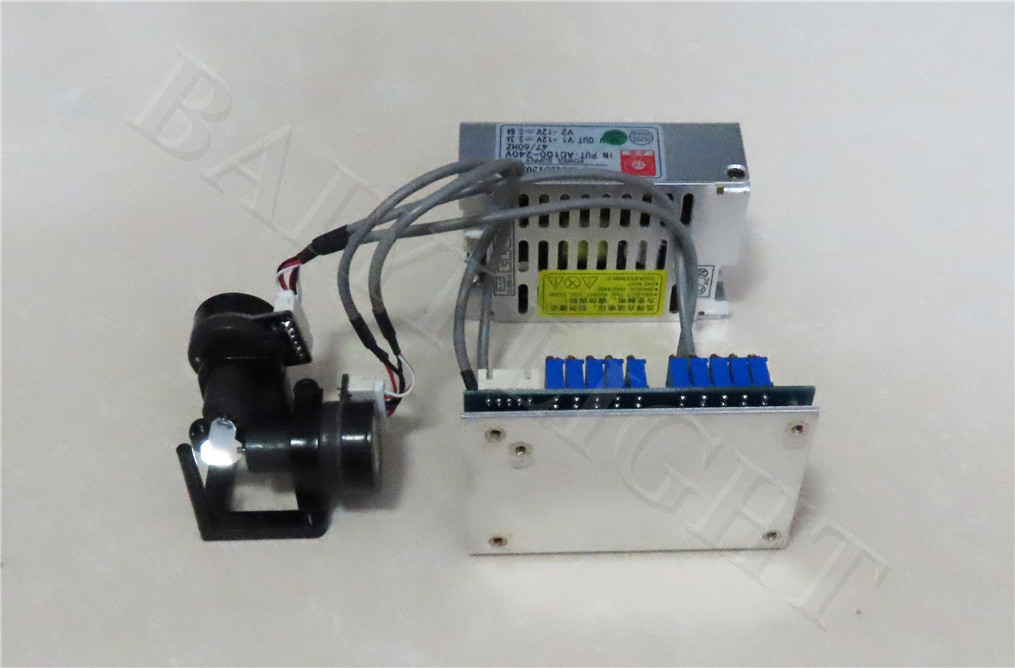

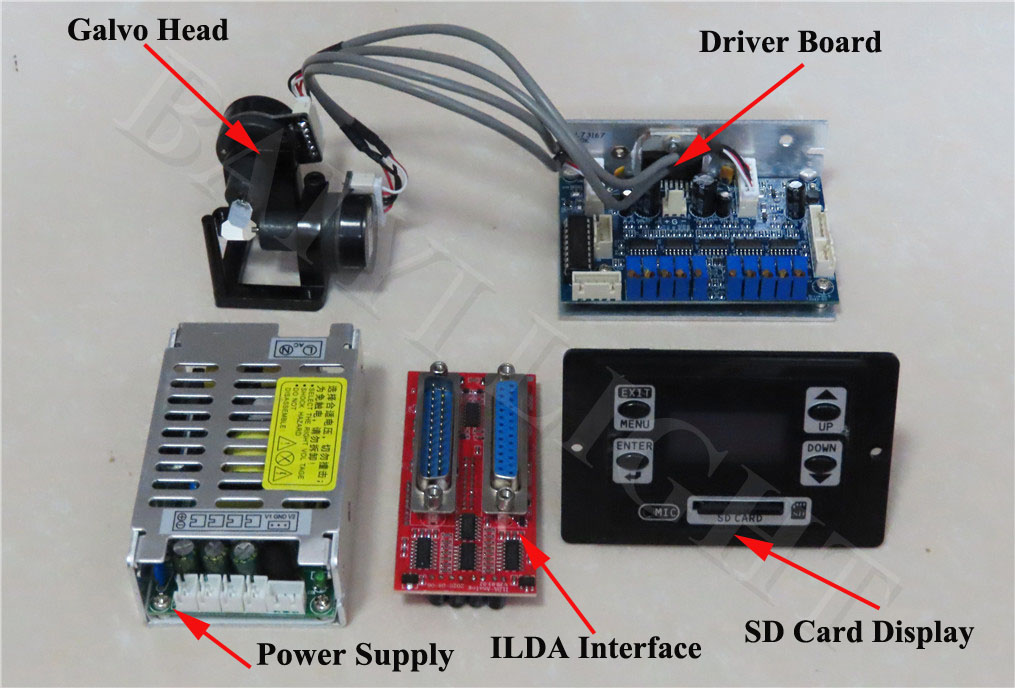

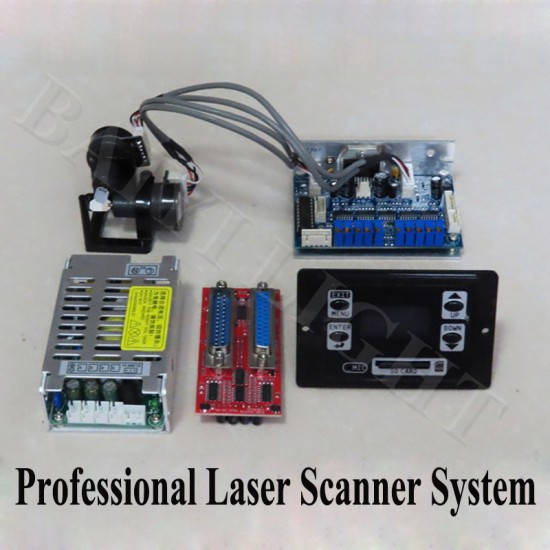

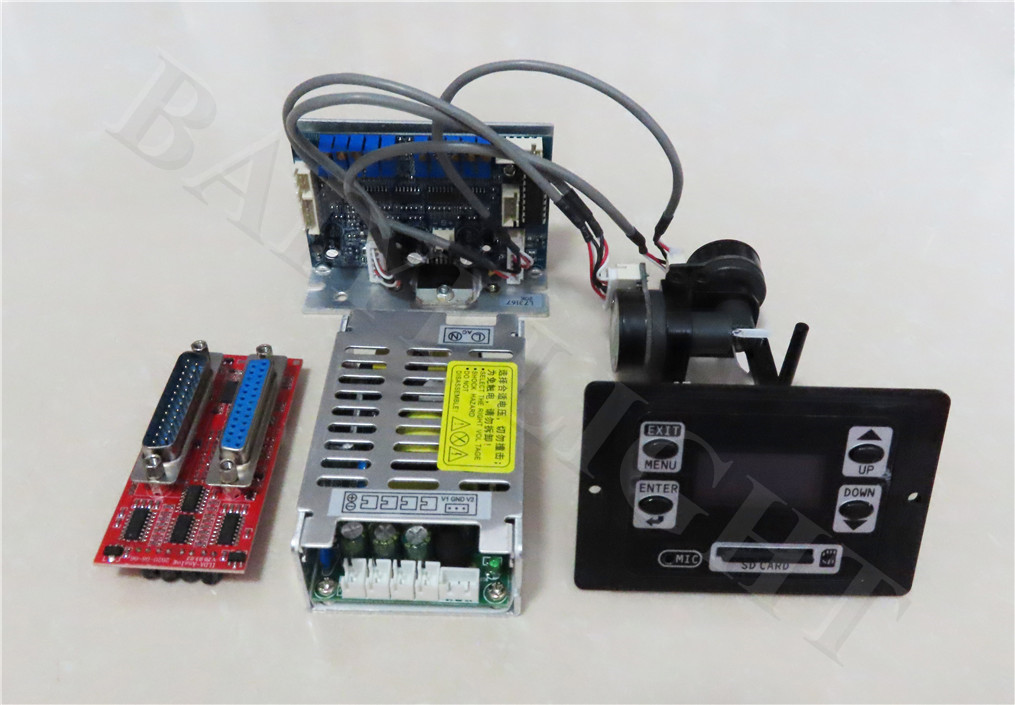

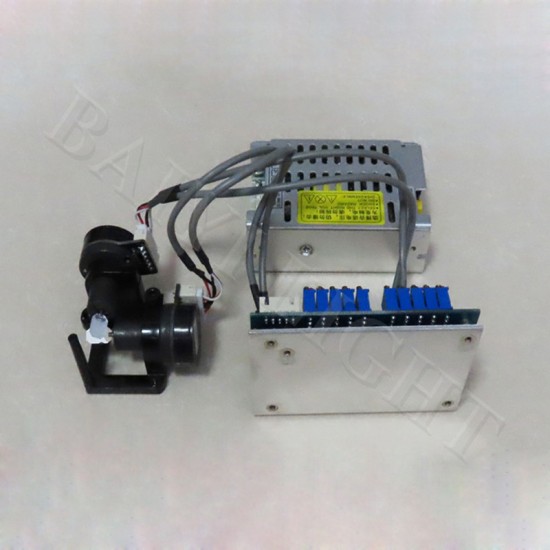

Standard package includes(same as the picture showing) :
- 2×Scanners
- 1x main board (show card)
- 1×Driver board
- 2×Mirrors
- 1×Scanner mount
- 1×power supply (PUS)
- 2×Cables driver to scanner
- 1×Cables driver to PUS
- 2×Cables driver to input signals
- 1x DB25 connector
Product Description:
- Closed Loop Moving Magnet Scanner
- Input resistance: 200K ohms, differential
- Signal Input voltage:±5V
- Input voltage requirements: +15V/1.0A,-15V/0.6A
- Operating temperature range:0~50℃
- Optical angle:±20° max
- Scanner speed:≥20Kpps (20K ILDA test-pattern ,±20°optical)
- X axis Mirror:9.5mm(length)*7.5mm(width)*0.7mm(thickness)
- Y axis Mirror:13mm(length)*7.5mm(width)*0.7mm(thickness)

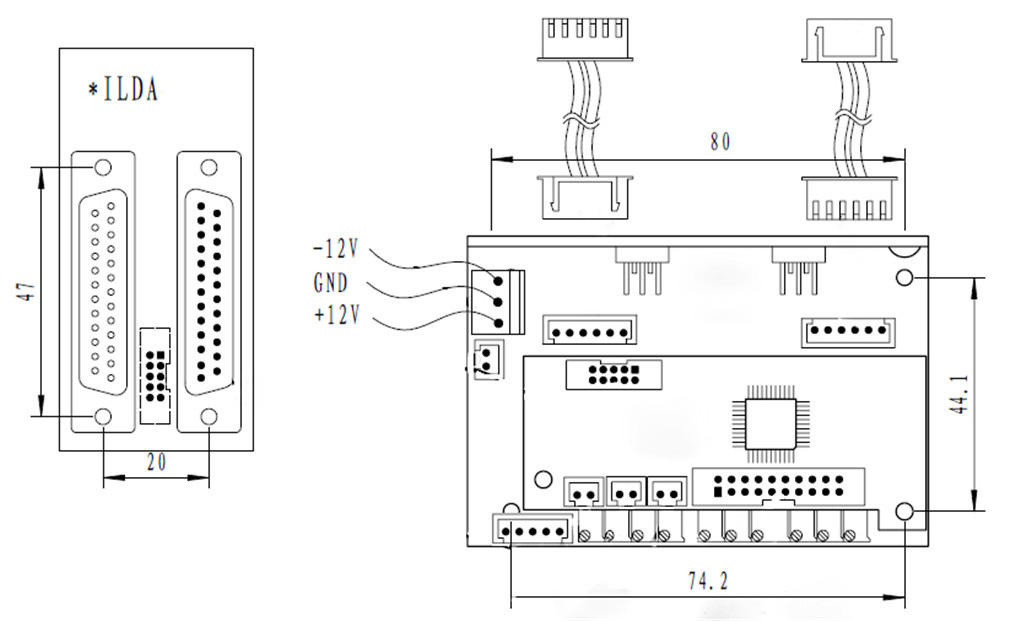

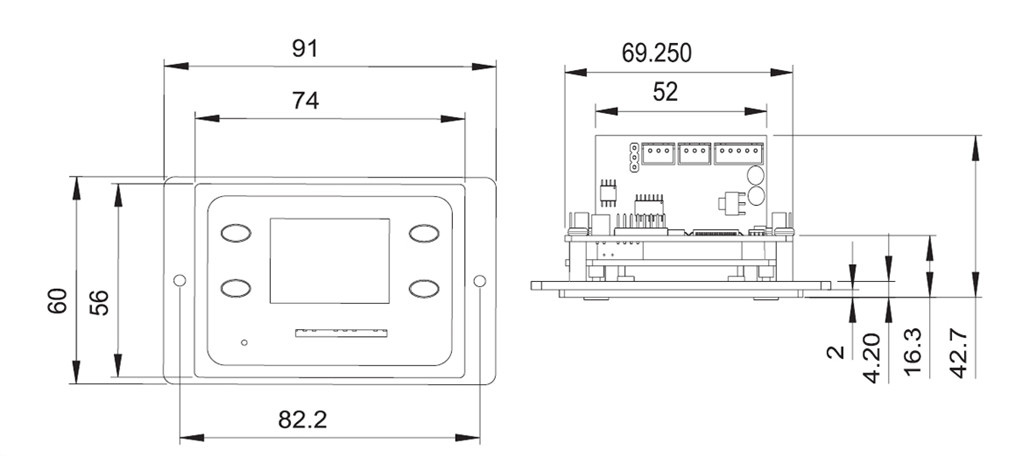

- Board size:7.4cm (length) * 5.0cm (width) * 2.5cm (height)
Product Description:
20º optical deflection:15Kpps@7*11*0.6
15º optical deflection:18Kpps@7*11*0.6
5º optical deflection:20Kpps@7*11*0.6
Potentiometer description:
1).IS Input scale (adjusted only in factory)
2).SG Servo gain (power of the feedback signal for internal PID controller
3).LFD Low frequency damping (correct overshoot)
4).HFD High frequency damping (correct undershoot)
5).LIN Zero offset (electrical offset of the driver, adjusted only in factory)
6).PS Position scale (increases or decrease input sensitivity of the computer, DO NOT change it)
